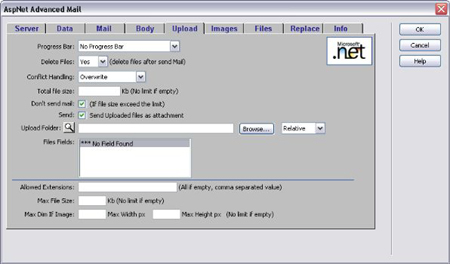

 How does it work - Upload panel |
|
 |
|
| |
|
It is possible build form pages that include file upload fields that are not required.
There is no need for any other components or special access to the server!
An Upload report is send to the redirect page. |
| |
|
| Upload report |
The redirect page receive, in the post, this field for each file uploaded:
- FileName
- FileLength
- FileStatus
To separate the single file value (for multiple upload file) to each variable I add a progressive number.
| FileStatus value: |
| 0 |
No problem |
Saved |
| 1 |
File size exceed |
Skipped |
| 2 |
File extension not allowed |
Skipped |
| 3 |
File extension not allowed and File size exceed |
Skipped |
An optional field is send to the redirect page: "NumFile" that is the number of file Uploaded
To see an example of the redirect page click this link
If you set the Total file size value and the sum of the size of the uploaded files exceed the files will not be saved and 2 parameters will be send to the redirect page in the post parameters.
The 2 parameters are:
UploadedSize: If exist the mail is not send
MaxFileSize: The max size allowed for the upload (The value of the field Total file size)
To verify use this code in the redirect page: |
<%
if request.Form("UploadedSize")<>"" and request.Form("MaxFileSize")<>"" then
if integer.parse(request.Form("UploadedSize")) > integer.parse(request.Form("MaxFileSize")) then
response.write("No send mail")
end if
end if
%> |
|
| |
|
| Progress Bar |
You can select the Progress Bar to display during the Upload
See the different type of Progress Bar Available.
The Progress Bar page are simple ASP page so You can modify it with your graphics. |
| |
|
| Delete Files |
After the mail is send You can delete or don't delete the uploadedfiles |
| |
|
| Conflict Handling |
Should a file already exist on the server, you can specify how you would like to handle the new file. Choices include overwriting, giving the file a unique name and skipping the file.
If You select "Unique name" and a file exist my code add e progressive number to the file name.
ex: Existing file is MyFile.txt the new name will be MyFile0.txt |
| |
|
| Total file size |
File upload size can be limited for each file or for the sum of all the uploaded files.
This field is the file size limit for the sum of the uploaded files.
It can be limited on the server side (after upload)
If this field is void no limit size are applied. |
| |
|
| Send |
If checked the uploaded files will be send in attachment with the mail, if not checked the mail will be send without the uploaded files. |
| |
|
| Don't send mail |
If this checkbox is checked and the uploaded files exceed the size limit the mail is not send and a report is send to the redirect page. (see UploadReport) |
| |
|
| Upload Folder |
The temporary Folder to save the uploaded file.
The non-existent folders from the path are auto-created!
You can define it with 3 method:
| Site Relative: |
a Path relative to the Site or to the Document
ex: /MyFolder/
ex: ../../MyFolder
Use the search button to find Your Upload Folder |
| Absolute: |
an Absolute Path
ex: c:\MyFolder\
With this You can save the file outside Your web site. Simply write the full path on the server as your upload folder! |
|
|
| |
|
| Files List |
The list of the File Field in Your form.
No Limit Number of Uploaded file!
Click on the file name to see/modify/insert the features applied to it. |
| |
|
| All this features are for each file!!! |
| |
|
| Allowed Extension |
You can select which file extensions you want to allow your users to upload.
If this field is void no restriction are applied.
It can be limited on the server side (after upload) and on the client side (before upload).
To select which file extension you want to allow you must enter the list of extension/s separated by comma.
ex: txt,doc,pdf |
| |
|
| Max File Size |
File upload size can be limited for each file or for the sum of all the uploaded files.
This field is the file size limit foreach uploaded files.
It can be limited on the server side (after upload) and on the client side (before upload).
The file that exceed the size are skipped
If this field is void no limit size are applied |
| |
|
| Max Dim If Image |
The pixel Image dimensions can be limeted!
It can be limited on the client side (before upload).
If one of them exceed the dimension the Upload don't start.
Tha value are in Pixels.
You can limit only Width, only Height or the two dimension.
If this field/s is/are void no limit are applied.
The test if image is on the file extension's. |
| |
|
|
